ESP32: The Ultimate Solution for IoT and Smart Devices

We have utilized the ESP32’s Bluetooth Low Energy (BLE) functionality for various applications:

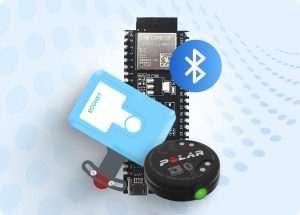

• Health Data Collection: BLE is employed to gather raw data from sensors, such as Polar sensors, enhancing health monitoring capabilities through seamless BLE sensor data collection.

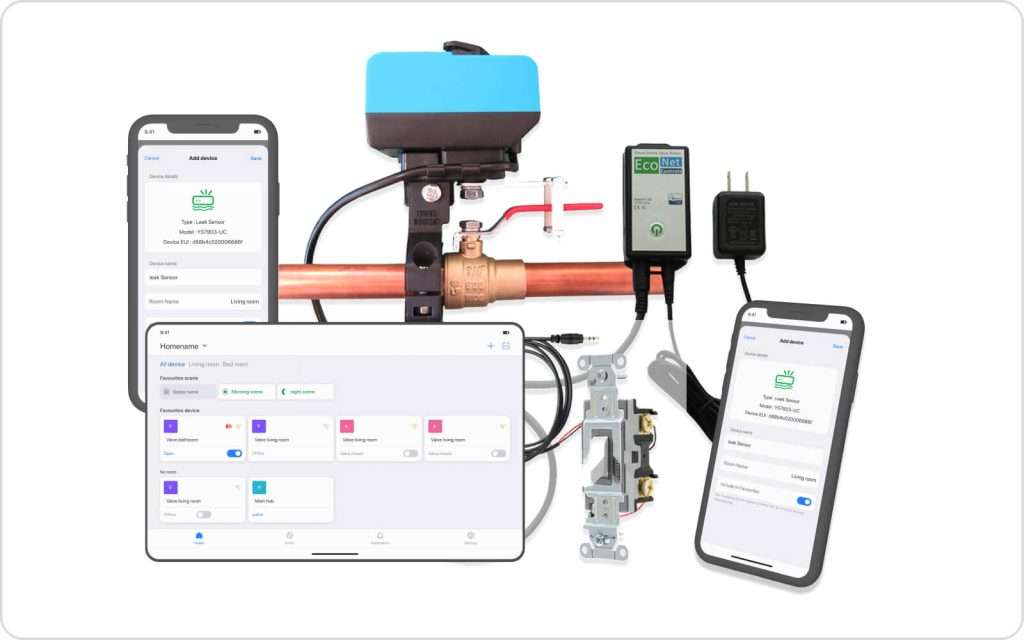

• Pump Monitoring: BLE connects a pump to the ESP32, enabling continuous tracking of its health metrics, including current levels, thresholds, and operational status (on/off), with added BLE IoT features like schedule management.

We have utilized the ESP32’s Bluetooth Low Energy (BLE) functionality for various applications:

• Health Data Collection: BLE is employed to gather raw data from sensors, such as Polar sensors, enhancing health monitoring capabilities through seamless BLE sensor data collection.
• Pump Monitoring: BLE connects a pump to the ESP32, enabling continuous tracking of its health metrics, including current levels, thresholds, and operational status (on/off), with added BLE IoT features like schedule management.

We have implemented ESP32 Mesh Technology to create a robust, tree-like network where nodes communicate with each other. In this structure, only the root node connects to the internet, while other nodes relay information through it. This ESP32 mesh network architecture reduces reliance on routers, supports both one-to-one and one-to-many communication, and provides secure, encrypted channels. It is an ideal solution for long-range, cost-effective IoT mesh networks.

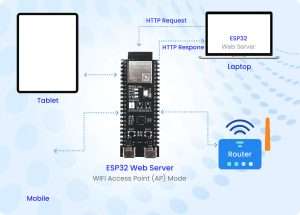

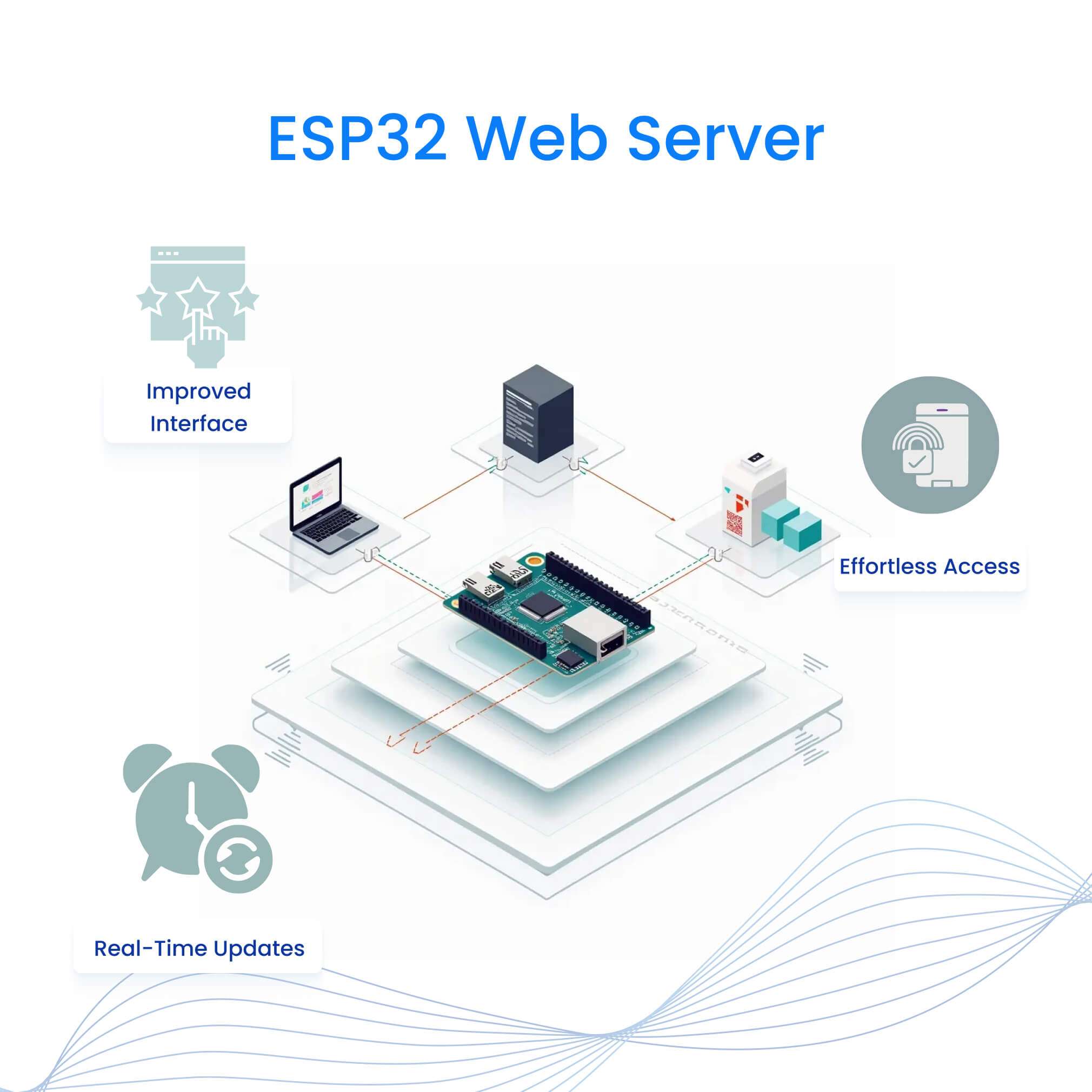

Our team has developed a local web server within the ESP32 to manage cloud server credentials and perform over-the-air (OTA) provisioning. This ESP32 embedded web server is crucial for efficient device management within a mesh network, enabling seamless setup, updates, and configuration.

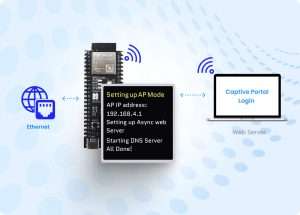

We have implemented an ESP32 captive portal to streamline the provisioning process, allowing users to enter Wi-Fi and cloud credentials without the need for hard-coded information. This feature significantly enhances the field configuration experience, as users can set up the device through any web browser, optimizing ESP32 user-friendly setup.

By integrating an SD card and file server, we’ve enabled the ESP32 to function as cloud storage. This capability is particularly beneficial for performing OTA updates in a mesh network, where only the root node has internet access, providing remote data storage options for seamless ESP32 OTA updates.

Our BLE/Wi-Fi provisioning system simplifies device configuration, allowing users to set up network credentials through a mobile app or interface. This ESP32 provisioning approach enhances user experience by eliminating the need for manual entry of credentials, making BLE Wi-Fi setup effortless.

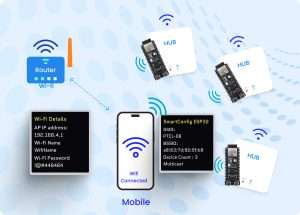

The ESP32 Smart Config feature further simplifies provisioning by allowing users to send Wi-Fi credentials directly from a mobile app to the ESP32. This quick Wi-Fi setup eliminates manual entry, enabling seamless network configuration and the ability to provision multiple devices at once, making it ideal for large-scale IoT deployments.

We have extensively utilized the SPI protocol on ESP32 in projects involving SD cards, LoRa communication, and Ethernet modules like the W5500 for internet access. The ESP32 SPI communication facilitates integration with various peripherals, enhancing overall system functionality in high-speed applications.

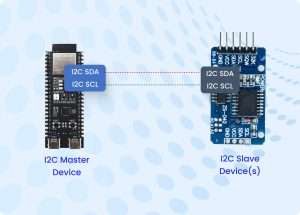

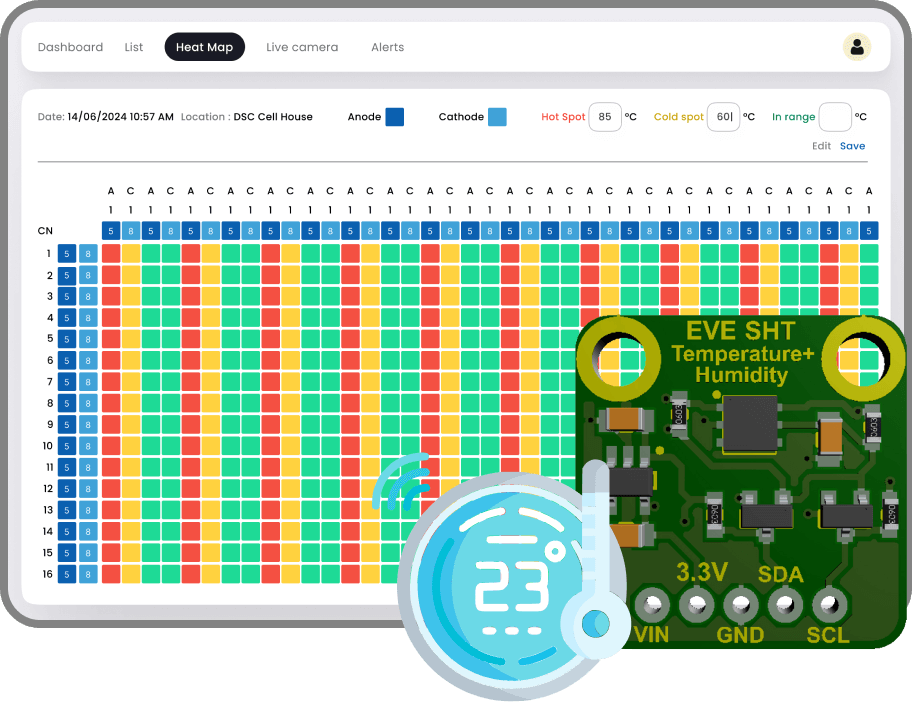

The ESP32 I2C protocol connects several modules, including an MCP RTC chip for real-time clock functionality, an OLED display, and a temperature sensor. This setup ensures seamless I2C communication among all components, enabling reliable data exchange and efficient sensor integration.

We’ve implemented ESP32 UART protocol for wireless communication via LTE modules, enabling cellular device-to-device communication. By connecting an LTE module to the ESP32, we achieve reliable wireless connections in areas without Wi-Fi, ideal for LTE IoT applications.

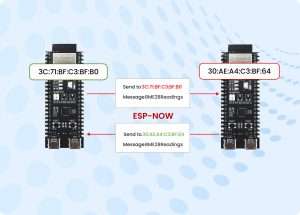

With ESP32 ESPNOW, we enable efficient device-to-device communication between ESP modules, facilitating local wireless connections within a limited range. This protocol functions similarly to mesh networking, enhancing ESP32 local communication flexibility for peer-to-peer applications.

By integrating 4G LTE modules, the ESP32 enables wireless communication over cellular networks, providing robust connectivity where Wi-Fi is unavailable. This ESP32 LTE integration is ideal for long-range IoT applications, such as remote monitoring and off-grid solutions that require continuous internet access.

We’ve transformed the ESP32 into an audio player by integrating an SD card, microphone, and speakers. This setup allows for audio recording, storage, and playback through an encoder/decoder, providing a complete ESP32 sound management solution. It’s ideal for IoT audio applications.

We’ve implemented face detection on ESP32 using integrated camera modules and image processing algorithms. This enables real-time ESP32 facial recognition suitable for security systems and smart home devices, leveraging low-power image processing for IoT.

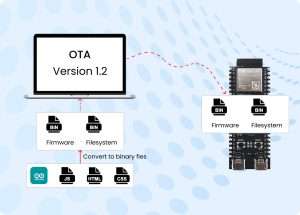

Our implementation of ESP32 OTA updates enables remote firmware updates and configuration changes, allowing us to push updates to field-deployed devices without requiring physical access. This over-the-air functionality ensures devices remain up-to-date, enhancing security and performance.

The ESP32 RMT module is used for encoding and decoding signals, making it ideal for remote control applications such as TVs, air conditioners, and smart home devices. It also controls WS2812 LEDs, allowing precise timing for complex lighting effects, demonstrating the versatility of ESP32 RMT capabilities.

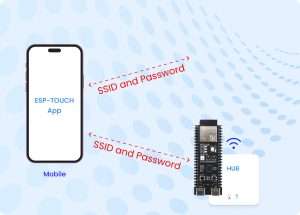

The ESP32 ESP Touch feature simplifies the Wi-Fi setup process for our devices. Using a smartphone app, users can configure Wi-Fi credentials through a touch gesture, enhancing ESP32 user experience and accelerating deployment for various IoT applications.

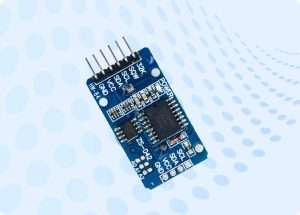

We have integrated a real-time clock (RTC) with the ESP32 to maintain accurate timekeeping, even during power outages. By leveraging the ESP32 RTC module, our projects can handle time-sensitive applications efficiently, making them suitable for battery-operated IoT devices that require reliable scheduling.
