Example Implementation for ESP32 with ESP-IDF Using Custom LoRa Library
Overview of Key Functions in Your LoRa Library

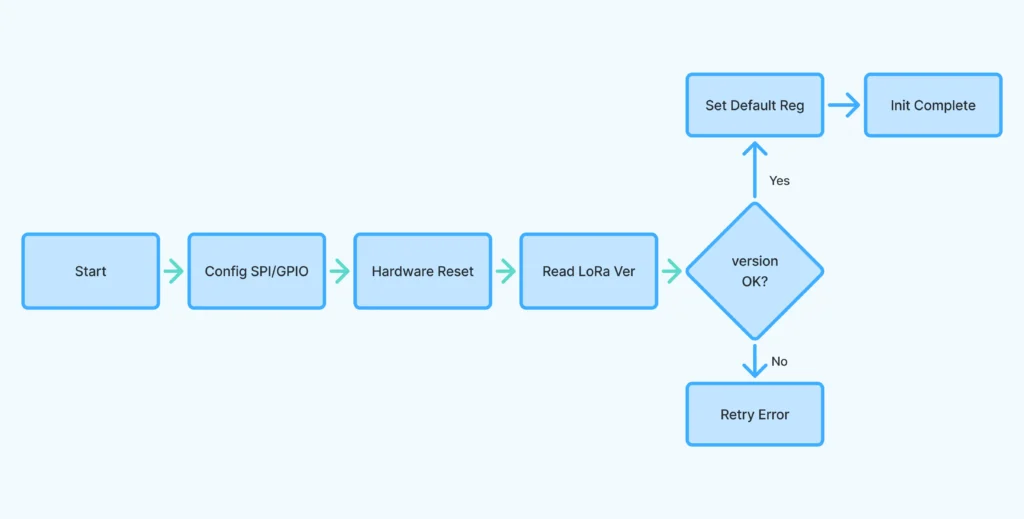

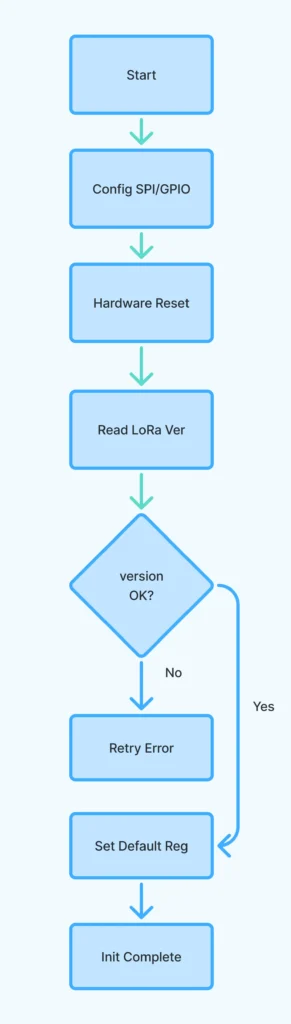

- lora_init()
Initializes SPI, configures GPIOs for CS and RESET pins, performs a hardware reset on the LoRa chip, reads and verifies the chip version, and configures default radio settings (power, frequency, standby mode). - lora_set_frequency(long frequency)
Sets the carrier frequency of the radio by writing corresponding values to registers, e.g., 868 MHz for Europe. - lora_set_tx_power(int level)
Configures the output transmit power level (valid range 2 to 17) to control signal strength. - lora_set_spreading_factor(int sf)
Sets the spreading factor (6–12), determining data rate and sensitivity; higher values increase range but lower data rate. - lora_set_bandwidth(long sbw)
Sets the signal bandwidth (e.g., 125000 Hz), affecting data capacity and interference tolerance. - lora_set_sync_word(int sw)
Defines the network “sync word” so only devices with matching sync words communicate. - lora_enable_crc() / lora_disable_crc()

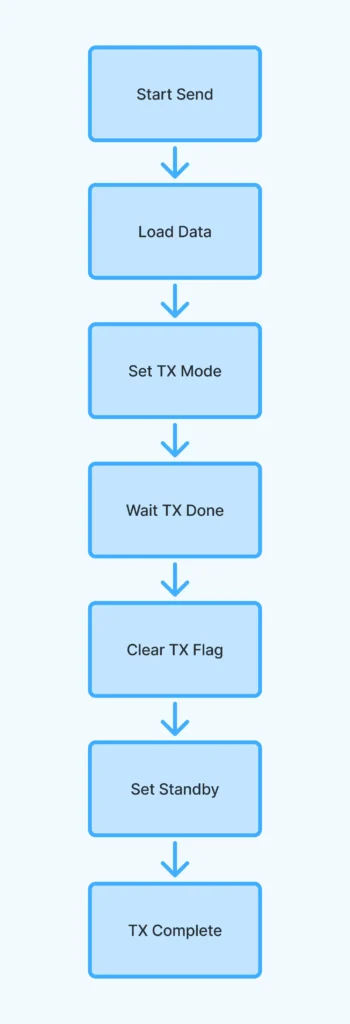

Enable or disable cyclic redundancy checking (CRC) for packet integrity. - lora_send_packet(uint8_t buf, int size)
Send a data packet. Loads data into the FIFO, switches the transceiver into transmit mode, and waits for transmission to complete. - lora_receive()

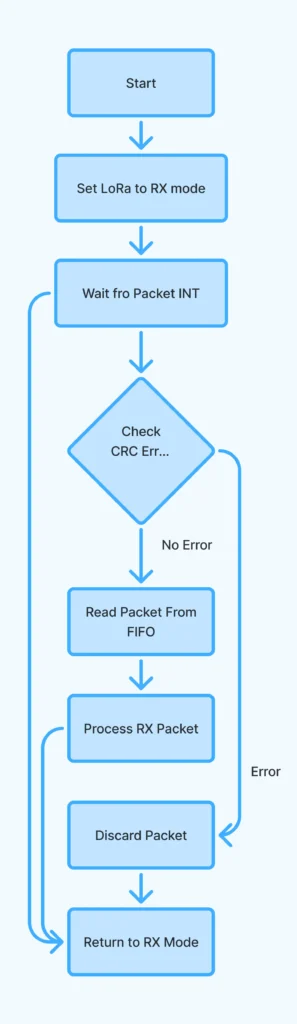

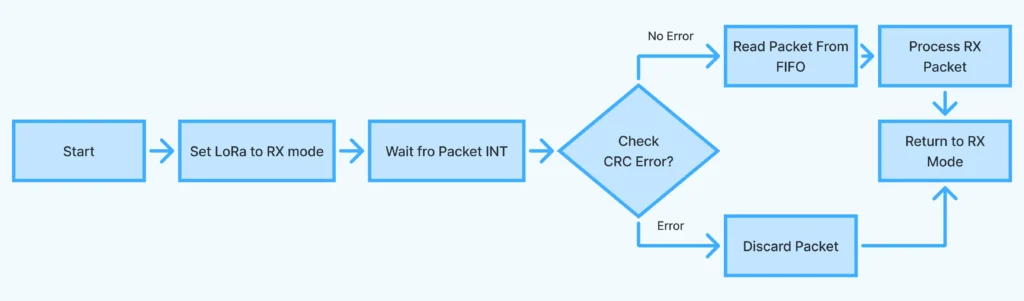

Puts the LoRa chip into continuous receive mode, listening for packets. - *lora_receive_packet(uint8_t buf, int size)
Reads an incoming packet into the provided buffer if available, returns the length or zero if none. - lora_reset()
Performs a hardware reset by toggling the reset GPIO pin with proper delays. - Note: For register definitions follow through your LoRa module IC’s data sheets.
Initialization and Configuration Example
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "lora_library.h"//custom library contains lora dependent functions and registers
#include <stdio.h>
void lora_setup() {
esp_err_t ret = lora_init();
if (ret != ESP_OK) {
printf("LoRa initialization failed!\n");
return;
}
lora_set_frequency(868000000); // Set frequency to 868 MHz
lora_set_tx_power(14); // Set transmit power level
lora_set_spreading_factor(7); // Use spreading factor 7 (good balance of speed and range)
lora_set_bandwidth(125000); // 125 kHz bandwidth
lora_set_sync_word(0xF3); // Set sync word for network isolation
lora_enable_crc(); // Enable CRC checking for data integrity
printf("LoRa initialized and configured.\n");
}
Example: LoRa Transmitter
void app_main() {
lora_setup();
int counter = 0;
char message[64];
while (1) {
snprintf(message, sizeof(message), "Hello from ESP32: message %d", counter++);
printf("Sending: %s\n", message);
lora_send_packet((uint8_t *)message, strlen(message));
vTaskDelay(pdMS_TO_TICKS(5000)); // Delay 5 seconds between sends
}
}
Explanation:
- Calls initialization and configures LoRa.
- Sends incrementing messages every 5 seconds.
- lora_send_packet takes care of loading data and managing transmission state.
Example: LoRa Receiver + Echo Responder
void app_main() {
lora_setup();
lora_receive(); // Enter continuous receive mode
char rx_buffer[128];
char response[128];
int response_counter = 0;
while (1) {
int len = lora_receive_packet((uint8_t *)rx_buffer, sizeof(rx_buffer) - 1);
if (len > 0) {
rx_buffer[len] = '\0'; // Null-terminate received string
printf("Received: %s\n", rx_buffer);
// Prepare an acknowledgment response with received message and counter
snprintf(response, sizeof(response), "%s [ack #%d]", rx_buffer, response_counter++);
printf("Sending response: %s\n", response);
lora_send_packet((uint8_t *)response, strlen(response));
vTaskDelay(pdMS_TO_TICKS(100)); // short delay before receive mode again
lora_receive(); // Go back to receive mode
}
vTaskDelay(pdMS_TO_TICKS(10));
}
}
Explanation:
- Initializes and configures LoRa as receiver.
- When the packet arrives, it reads, prints it, then sends back the same message with an acknowledgment number.
- After sending a response, it returns to receive mode.
